Jiawo Electromechanical series

A manufacturer and exporter specializing in the production of high pressure cleaning machines and motors.

Current location: home >> Jiawo Electromechanical series

Unflanged motor with pedestal (B3)

Unflanged motor with pedestal (B3)

Unflanged motor with pedestal (B3)

Unflanged motor with pedestal (B3)

Unflanged motor with pedestal (B3)

Unflanged motor with pedestal (B3)

Unflanged motor with pedestal (B3)

Unflanged motor with pedestal (B3)

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

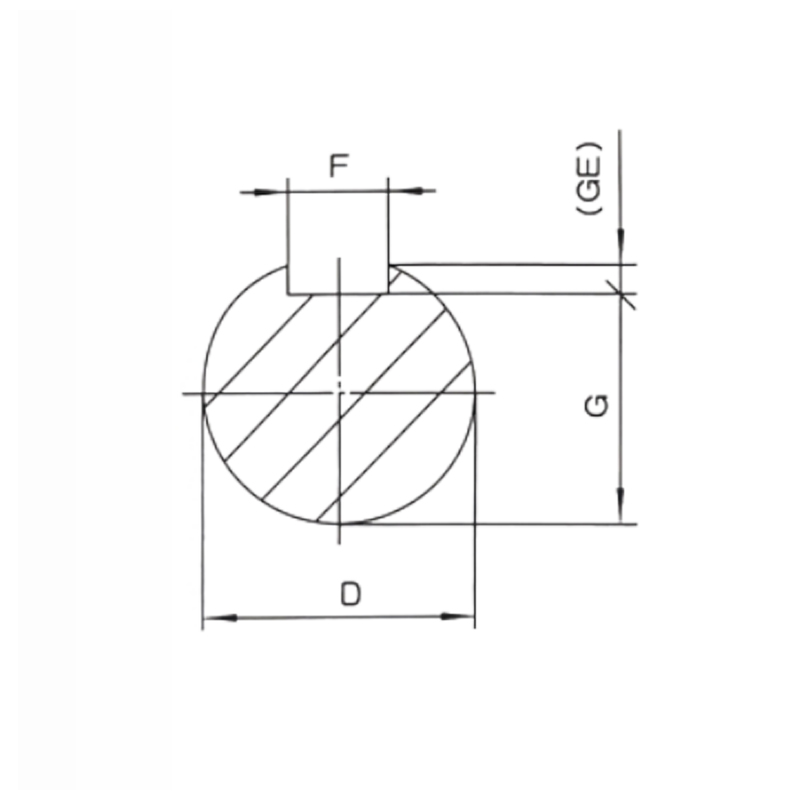

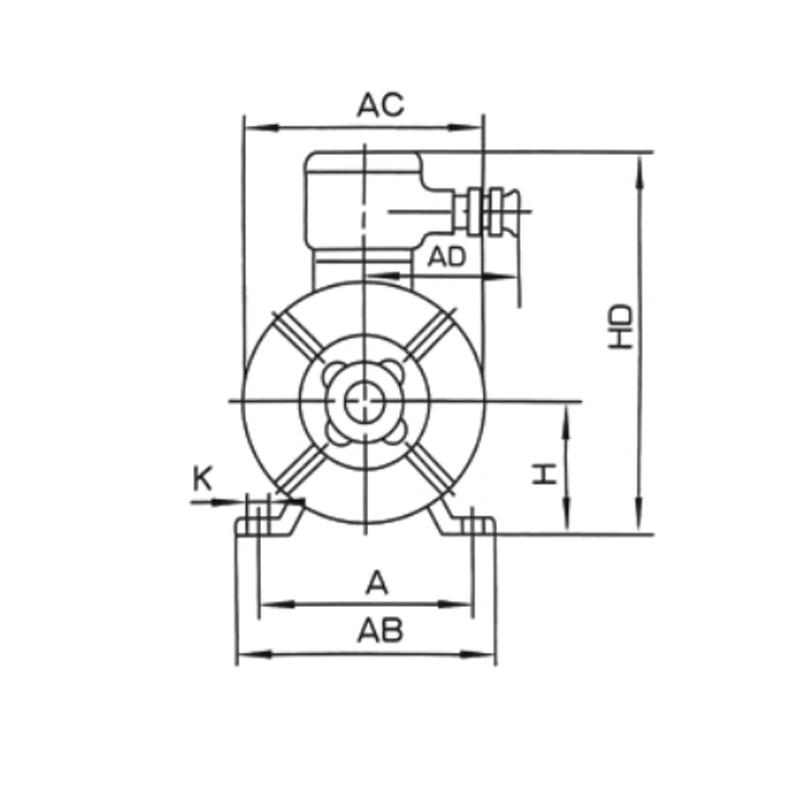

Frame	Ploes	A	B	C	D	E	F	G	H	K	Inlet	AB	AC	AD	HD	L

80M	2.4.6.8	125	100	50	19	40	6	15.5	80	10	M30X2	160	170	180	300	330
90S		140		56	24	50	8	20	90			180	185		320	385
90L			125													415
100L		160	140	63	28	60		24	100	12		200	210		355	456
112M		190		70					112			245	220	190	370	510
132S		216		89	38	80	10	33	132			280	270		420	528
132M			178													568
160M	2.4.6.8.10.12	254	210	108	42	110	12	37	160	14.5	M36X2	330	320	202	490	706
160L			254													735
180M		279	241	121	48		14	42.5	180	15.5		355	360		530	760
180L			279													777
200L		318	305	133	55		16	49	200	18.5	M48X2	390	400	235	590	812
225S	4.8.10.12	356	286	149	60	140	18	53	225			435	450		635	865
225M	2		311		55	110	16	49								860
	4.6.8.10.12				60	140	18	53								888
250M	2	406	349	350					250	24	M64X2	490	500	270	720	948
	4.6.8.10.12				65			58
280S	2	457	368	190					280			545	550		780	1000
	4.6.8.10.12				75		20	67.5
280M	2		419		65		18	58								1035
	4.6.8.10.12				75		20	67.5
315S	2	508	406	216	65		18	58	315	28	2-φ70	630	620	320	910	1230
	4.6.8.10.12				80	170	22	71								1280
315M	2		457		65	140	18	58								1345
	4.6.8.10.12				80	170	22	71								1400
315L	2		508		65	140	18	58								1350
	4.6.8.10.12				80	170	22	71								1400
355S	2	610	500	254	75	140	20	67.5	355			750	740	320	1050	1385
	4.6.8.10.12				95	170	25	86								1410
355M	2		560		75	140	20	67.5								1481
	4.6.8.10.12				95	170	25	86								1512
355L	2		630		75	140	20	67.5								1572
	4.6.8.10.12				95	170	25	86								1600

go back
